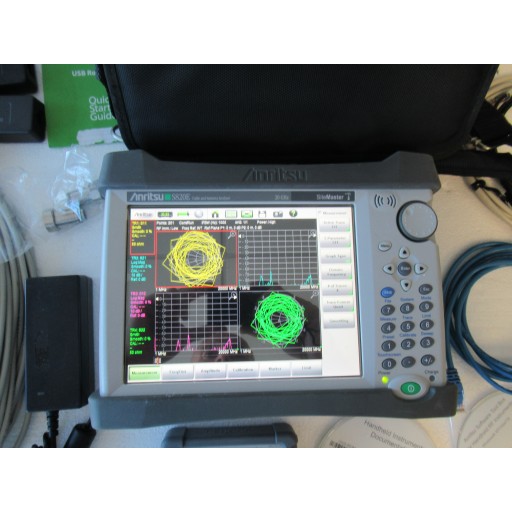

Anritsu S820E


 Scarica il datasheet

Microwave Site Master Handheld Cable & Antenna Analyzer

S820E frequency range: 1 MHz — 8, 14, 20, 30, or 40 GHz
VNA Mode (option) offers fully reversing 4 S-Parameter measurement capabilities
VVM Mode (option) with standard A/B and B/A Ratio capability
VIP Mode: Optical connector inspection with IEC 61300-3-35 based Pass/Fail standard (requires USB Video Inspection Probe G0306A, sold separately)
110 dB of dynamic range from 20 MHz — 40 GHz
550 μs/data point for fast field measurements
Advanced and Classic Mode GUI (i.e. S810D/S820D)
Coaxial and waveguide measurement supported
1-port measurements: Return Loss, VSWR, Cable Loss, Distance-To-Fault, Smith Chart, 1-port phase
2-port measurements: Transmission Measurement and Swept Cable Loss
High Accuracy Power Meter measurements with external power sensors
USB/Ethernet connectivity, full remote control capability
Intuitive menu-driven 8.4 inch touchscreen with daylight/nighttime viewable modes
Field-proven design: Explosive Atmosphere MIL-PRF-28800F Section compliant
Standard three-year warranty (battery one-year warranty)
